Autel MaxiPRO MP900 KIT with All Systems Diagnostics and Service Tablet

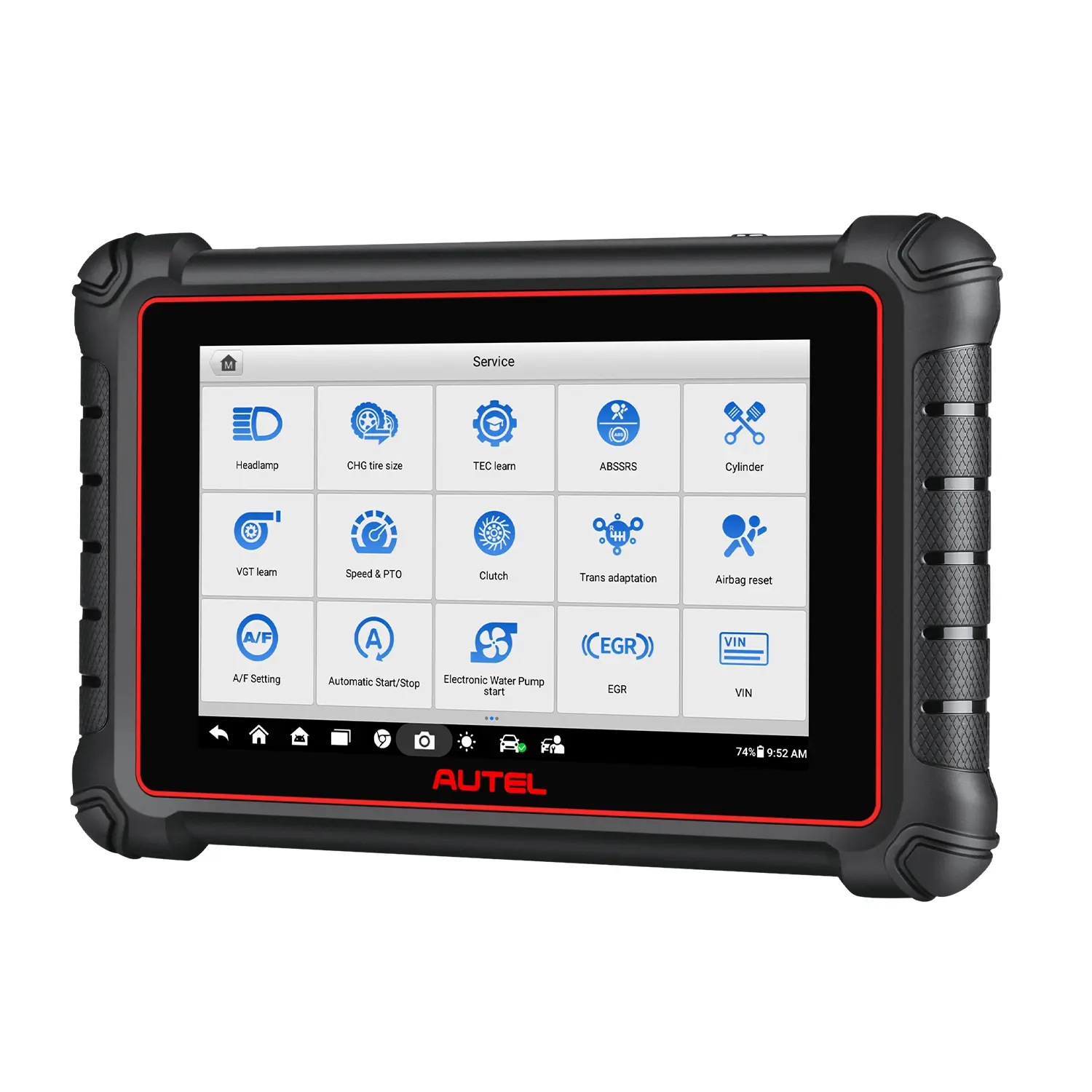

The MaxiPRO MP900 KIT is an all-system diagnostics tablet, compatible with U.S., Asian, and European vehicles, 1996 and newer. The eight-inch touchscreen Android-based tablet features a quad-core processor for maximum speed and efficiency.

Autel MaxiPRO MP900 KIT Features

• 1-Year Free Software Updates & Warranty
• Includes OE-compliant non-OBD II adapter kit for specific vehicles
• Extensive vehicle coverage for U.S., Asian, and European vehicle, 1996 and newer
• Exceptional OE-Level system coverage for all electronic systems
• Complete code, live data, ECU information, active test, and special function capabilities
• ECU coding functions like MaxiSYS MS906 Pro and MaxiCOM MK906 Pro, offering online ecu coding for BMW/Porshce/VW, activating hidden functions, customizing OE settings, auto start/stop/on/off, replacement module matching/coding/re-coding/adaptation, VAG guided functions, and more. These functions improve drivability, comfort, and prolong the service life of parts.
• Expansive 40-plus menu of service and maintenance tasks
• Generates Pre & Post Scan Reports
• Supports the latest communication protocols, including DoIP and CAN FD
• Smart AutoVIN technology for identifying vehicles easily
• Automatic system and software updates with real-time push message notifications via Wi-Fi
• Remote Access Technical Support Troubleshooting
• Shop management application to maintain data files, customer info, and vehicle records
• Convenient data management system for managing internal applications and reviewing data
• Bi-Directional / Active Test function

Specifications

Operating System	Android 11
Processor	Quad core Processor(1.8GHz)
Memory	4GB RAM &64GB ROM
Display	8-inch LCD capacitive touchscreen with 1280x800 resolution
Rear Camera	8 MP
Connectivity	USB Type-C
	USB 2.0
	Wi-Fi
	Mini SD card (supports up to 64GB)
Audio Input/Output	Input: N/A
	Output: buzzer
Power and Battery	3.7 V/7700mAh lithium-polymer battery
	Charges via 5 VDC power supply
Battery Charging Input	5 V/3 A
Operating Temp	0 to 50°C (32 to 122°F)
Storage Temp	-10 to 60°C (14 to 140°F)
Protocols	ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISO11898(High-speed, Middle-speed, Low-speed and Single-wire CAN, fault-tolerant CAN) , SAE J2610, GM UART, UART   Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6, DoIP, CANFD

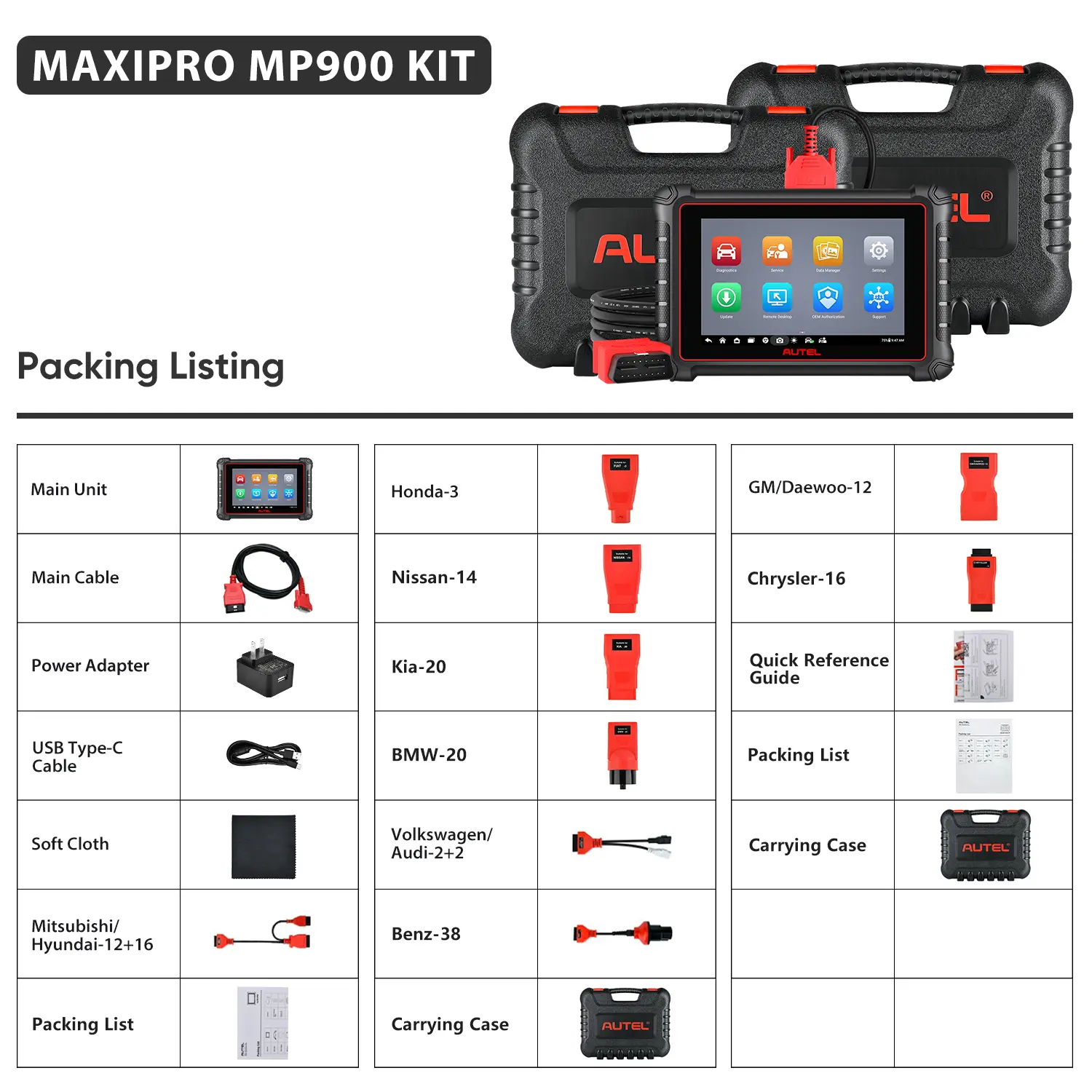

Packing List

• 1x MP900 Main Unit
• 1x Main Cable
• OBD1 Adapters
• 1x Power Adapter
• 1x USD Type-C Cable
• 1x Soft Cloth
• 1x Quick Reference Guide
• 1x Packing List(This document)
• 1x Carrying Case

Product Guides & Downloads

• Autel MP900 KIT User Manual (PDF)
