Autel MaxiSys MS909CV Commercial Vehicle Diagnostics Tablet

Autel MaxiSYS MS909CV is an advanced commercial vehicle diagnostic tablet compatible with 80+ models of light, medium and heavy-duty vehicles. The 9.7-inch wireless Android-based touchscreen tablet performs extensive diagnostics including the ability to read/erase codes, view/graph live data, and perform active tests. The tablet includes a Bluetooth-enabled vehicle communication interface (VCI)/J2534 pass-thru device, the MaxiBAS B200 battery/starting/charging system test device, alligator clamps, multimeter and amp clamps.

Autel MaxiSys MS909CV Features

• 1-Year Free Software Updates & Warranty
• Through Topology Module Mapping, you can see the structure of communication of each ECU module globally, color-coded topology shows full systems, locate faults more easier, and solve problems quickly
• With bi-directional control ability, to control various vehicle parts and components like fuel pumps, radiator fan, throttle, mirrors, interior & exterior lights, sound horn, wipers, headlamps, windows, and etc to test its functionality
• As Autel TOP Of The Line Factory CV Scan Tool, Autel MaxiSYS MS909CV is an advanced commercial vehicle diagnostic tablet compatible with 80+ models of light, medium and heavy-duty vehicles
• Upgraded Octa-Core Processor and 128GB Storage and Android 10.0 Operating System with 9.7” Touchscreen and the Whole-New MaxiFlash VCI to Deliver Smooth Operation
• Advanced Diagnostics with Module Topology on Select Vehicles and Enhanced AutoSCAN / VINScan

• Supports Heavy Duty Battery Test & Health Report

Specifications

Operating System	Android 10.0
Processor	Qualcomm 660 Octa-core Processor (2.2GHz Quad-core A73 + 1.8GHz Quad-core A53)
Memory	4GB RAM & 128GB On-board Memory
Display	9.7-inchTFT-LCD with 1536 x 2048 resolution & capacitive touch screen
Connectivity	Dual Wi-Fi (802.11 a/b/g/n/ac 2x2 MIMO)
	BT V5.0 + BR/EDR
	GPS
	USB 2.0 (2 USB TYPE-A ports and a Mini USB port)
	HDMI 2.0
	SD Card (Support up to 256GB)
Camera	Rear: 16 Megapixel, Autofocus with Flashlight
	Front: 16 Megapixel
Sensors	Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output	Microphone
	Dual Speakers
	3-Band 3.5 mm stereo/standard headset jac
Power and Battery	15000mAH 3.8V lithium-polymer battery
	Charging via 12V AC/DC power supply with the temperature between 0°C and 45°C
Input Voltage	12V/1.3A Adapter
Operating Temperature	0 to 50°C (32 to 122°F)
Storage Temperature	-20 to 60°C (-4 to 140°F)
Dimensions(W x H x D)	304.4 mm (11.98") x 227.8 mm (8.97") x 42.5 mm (1.67")
Weight	1.66kg (3.66 lb.)
Protocols	DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can(GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141,   ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda   Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART   with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708,   SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)

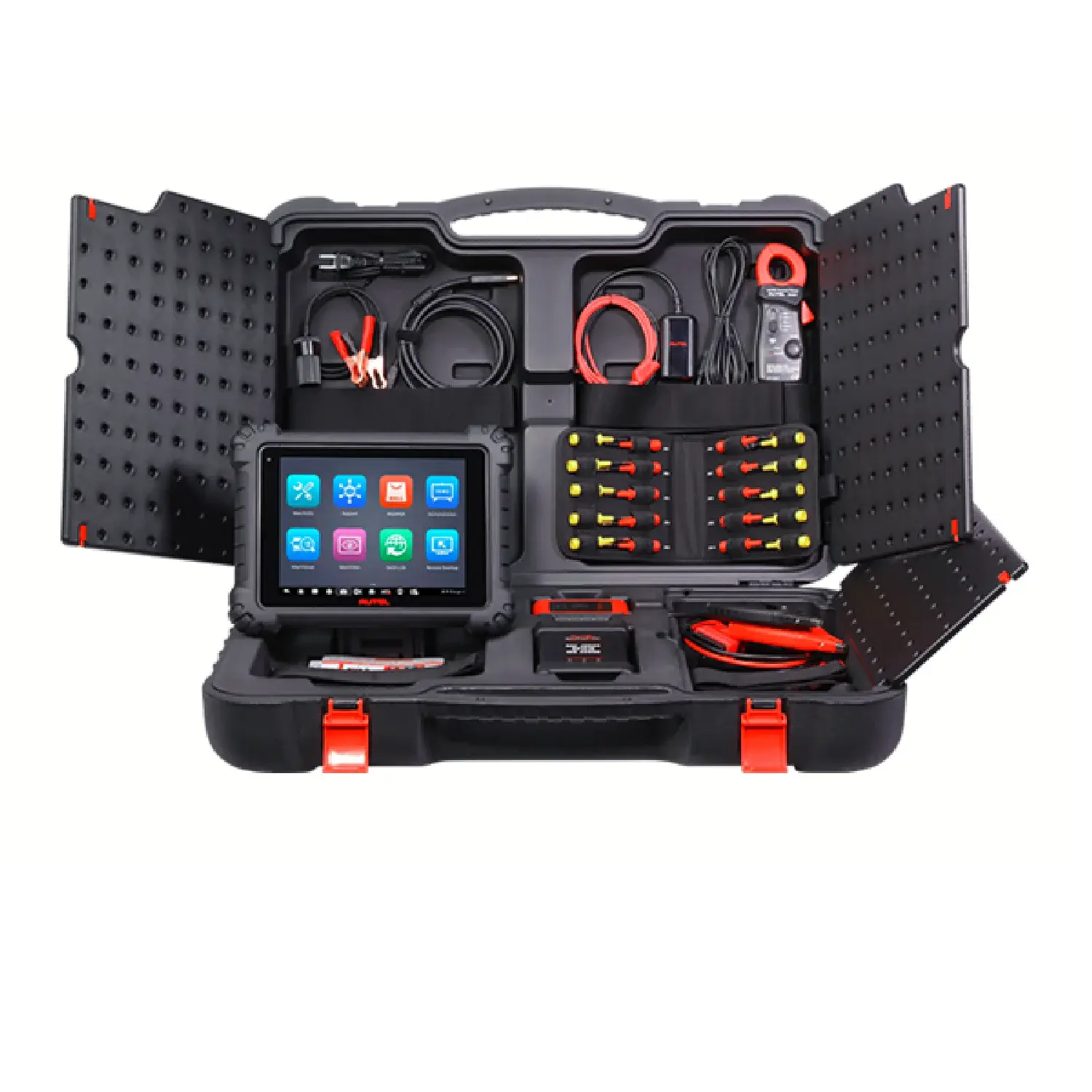

Packing List

• 1x MS909CV Tablet
• 1x MaxiFlash VCI
• 1x AC/DC Adapter (12 V)
• 1x Main Cable V2.0
• 1x USB 2.0 Cable V2
• 1x Type C USB Cable
• 1x Clipper Cable
• 1x Cigarette Lighter
• 2x Light Fuse 6 × 30 mm
• 1x Deutsch-6
• 1x Deutsch-9
• 2x JW1
• 2x JW2
• 2x JW3
• 2x JW4
• 2x JW5
• 2x JW6
• 2x JW7
• 2x JW8
• 2x JW9
• 2x JW10
• 1x UNI-4
• 1x MaxiBAS B200
• 1x 400A Current Clamp
• 2x Multimeter Test Lead
• 2x Alligator Clip
• 2x Multimeter Probe
• 1x DM100 Digitat Muttimeter
• 1x Quick Reference Guide
• Packing List
• 1x Soft Cloth
• 1x Case
• 1x Carrying Case 687 x 170 x 471mm
