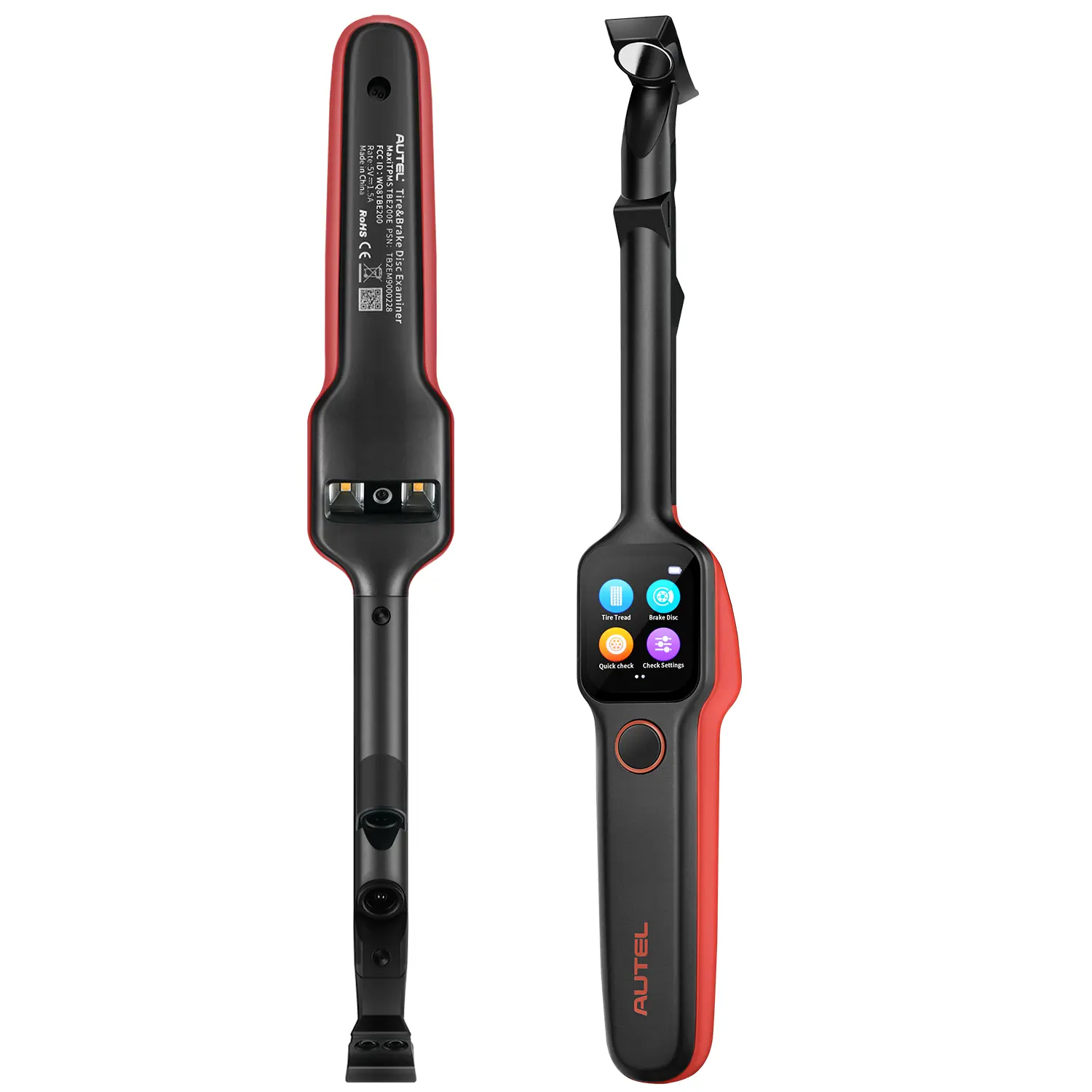

Autel MaxiTPMS TBE200 Laser Tire Tread & Brake Disc Wear Detector

The MaxiTPMS TBE200 is a dual-function laser measurement tool designed for automotive technicians and tire shops. It combines 0.1mm-accuracy laser scanning with dual cameras to provide comprehensive tire and brake disc wear analysis without wheel removal. The 1.65-inch AMOLED touchscreen displays real-time data curves and actionable maintenance recommendations, while Wi-Fi connectivity enables seamless integration with Autel’s MaxiTPMS ITS600E TPMS tablet for advanced reporting.

Autel MaxiTPMS TBE200 Features

Hardware Specifications

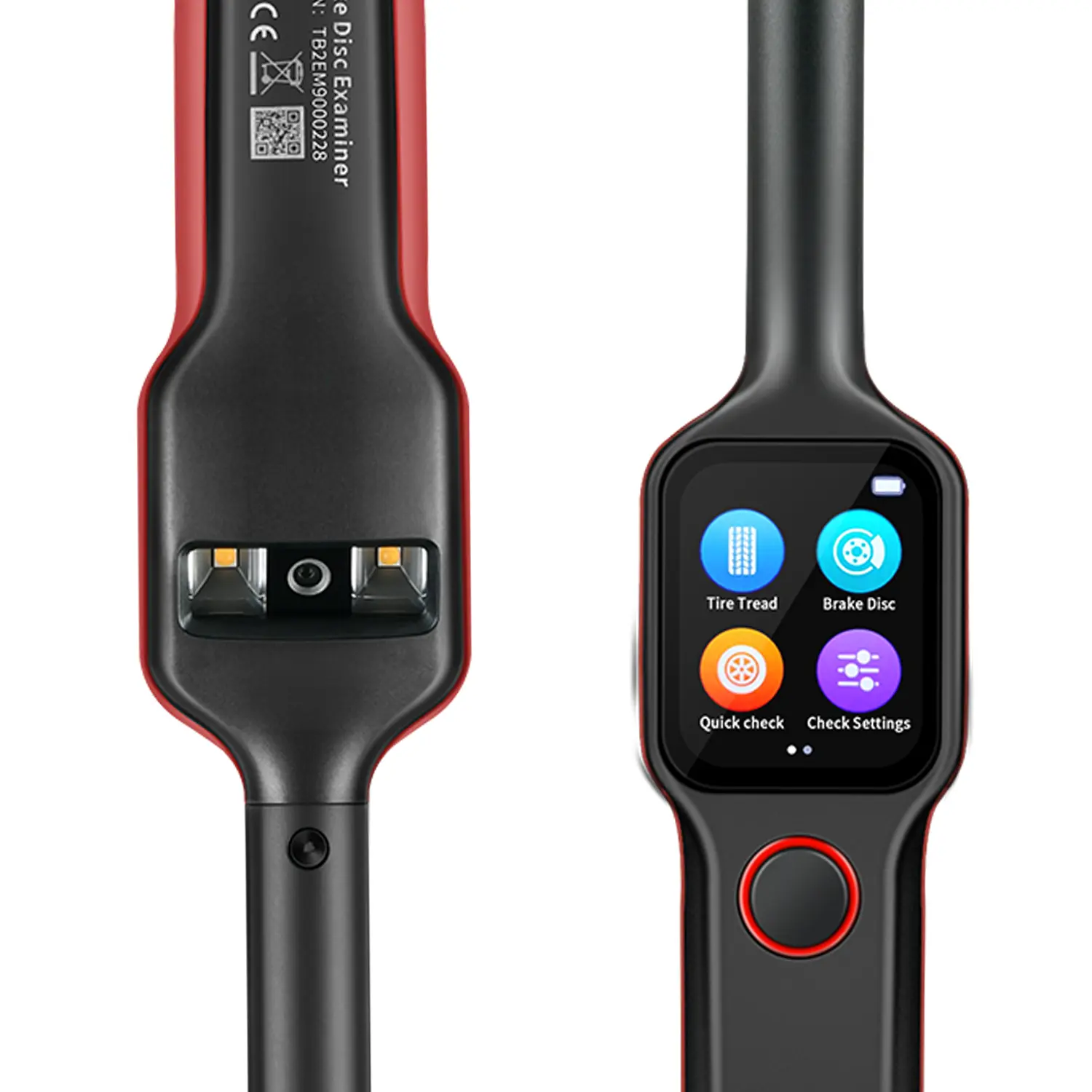

• 1.65-inch AMOLED Super Retina touchscreen (348×442 resolution)
• 4x ARM Cortex-A35 1.5GHz processor with 1GB RAM + 4GB storage
• 3000mAh lithium-ion battery (8-hour continuous use)
• 1MP macro camera (tire damage documentation) + 8MP zoom camera (TIN/DOT scanning)
• Wi-Fi 802.11 b/g/n, USB-C, and vibration alert system
• IP54 dust/water resistance for shop environments

Laser Measurement Technology

• 0.1mm precision laser scanning for tire tread depth and brake disc wear
• Full tread measurement with automatic wear pattern mapping
• Brake disc thickness analysis without wheel removal
• Quick Check mode for 10-second tire/brake health assessment

Real-Time Data Analysis

• Graphical wear curves and color-coded alerts (green/yellow/red)
• Uneven wear detection with radial/axial deviation analysis
• Single-tire/detail reports with replacement thresholds
• State of Health (SoH) calculation for tire and brake components

Vehicle Integration & Reporting

• AutoVIN scanning via camera for vehicle-specific maintenance specs
• Integration with Autel ITS600 for combined TPMS/tire health reports
• QR code generation for instant report sharing via mobile devices
• Cloud storage of inspection data with Autel’s Data Manager

Advanced Features

• Night mode for low-light environments
• Ergonomic grip design for one-handed operation
• Reverse polarity protection and overvoltage cutoff
• Software updates via Wi-Fi with real-time notifications

Specifications

Recommended Use	Indoor
Processor:	4x ARM Cortex-A35 (1.5 GHz)
Memory:	1GB RAM LPDDR3 4GB ROM
Display:	1.65-inch AMOLED capacitive touchscreen with 348×442 resolution
Connectivity:	Wi-Fi/USB 2.0/Type C
Sensors;	CMOS WXGA, 1 megapixel 8 megapixel, 30fps
Audio Input/Output:	Output: Beep
Power and Battery:	3.7 V/3000 mAh 18650 lithium-ion battery/Charges via 5 V AC/DC power supply
Tested Battery Life:	Around 8 hours of continuous use
Battery Charging Input :	5 V/1.5 A
Power Consumption:	300 mA (AMOLED on with default brightness) @3.7 V
Operating Temp.:	-10to60°C(14to140°F)
Storage Temp.:	-20to70°C(-4to158°F)
Operating Humidity:	5%-95%non-condensing
Dimensions (W x H x D):	283.0 mm (11.14”) x 39.0 mm (1.54”) x 33.5 mm (1.32”)
Net Weight	188 g (0.41 lb.)

Packing List

• 1x MaxiTPMS TBE200E Main Unit
• 1x Calibration Table
• 1x Power Adapter
• 1x Type C USB Cable
• 1x Quick Reference Guide
• 1x Packing List
• 1x Carrying Case
