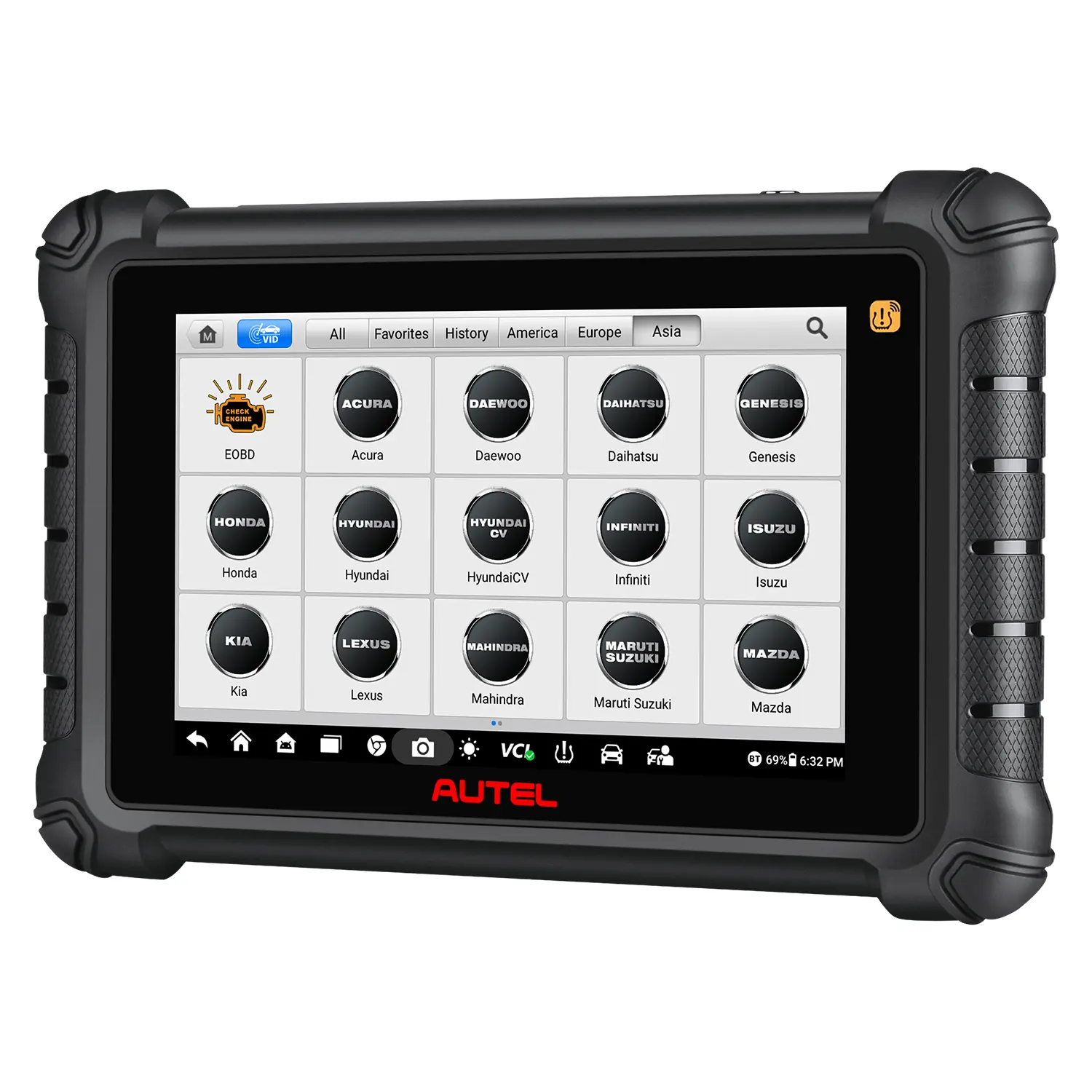

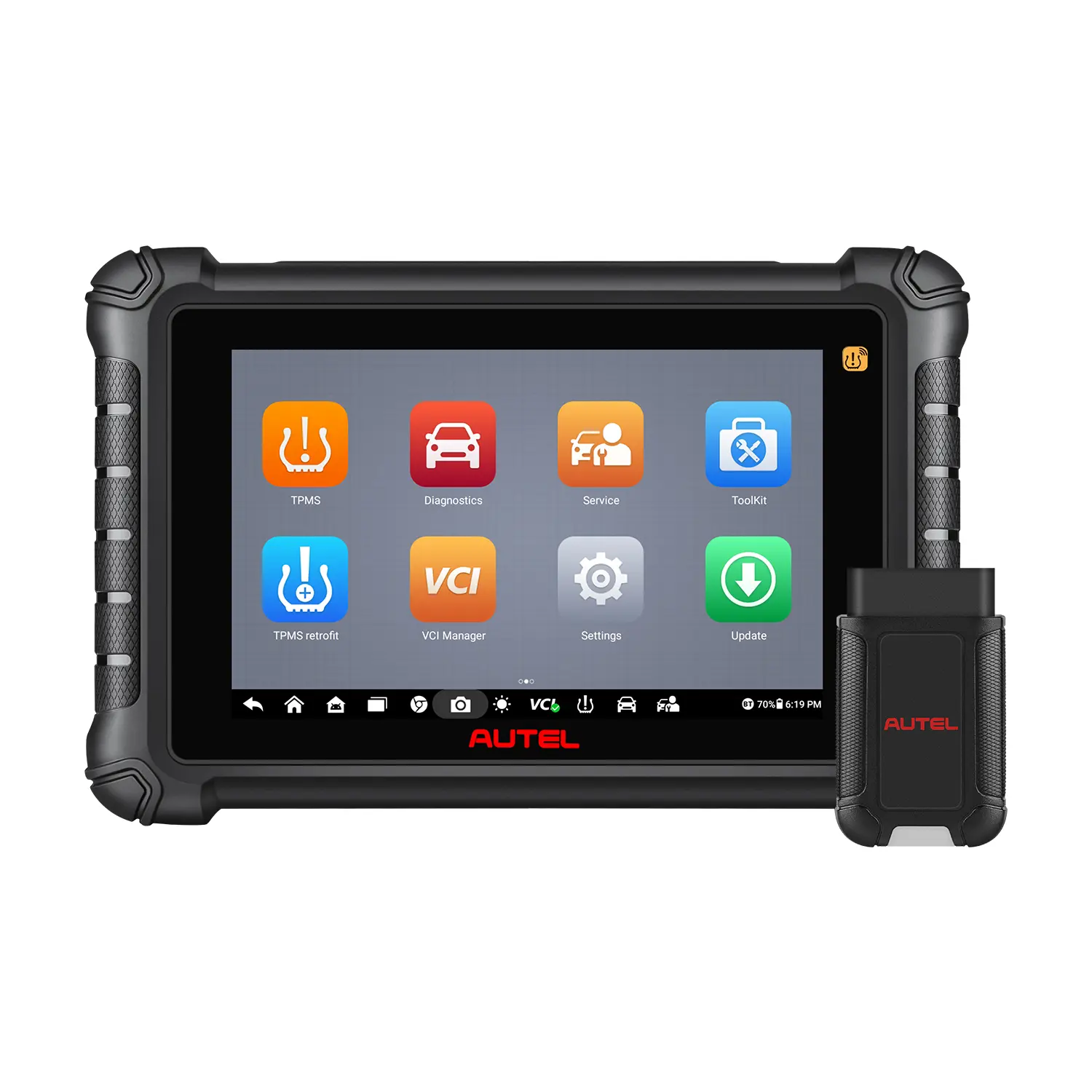

Autel MaxiTPMS TS900 with Complete TPMS Solution

The Autel MaxiTPMS TS900 TPMS tool is a versatile device that combines TPMS functionality and diagnostics. It features a wireless touchscreen tablet that offers a range of features including complete TPMS programming, relearning, and activation, more than 40 services, and OE-level diagnostics. Additionally, it offers new features such as WiFi printing, pre- and post-scans. The TS900 TPMS scan tool is also compatible with the Autel MX-Sensor BLE, which comes preprogrammed for Tesla vehicles.

Autel MaxiTPMS TS900 Features

• 1-Year Free Software Updates & Warranty
• Provides comprehensive TPMS coverage
• Programs AUTEL MX-Sensors to replace 99% of TPMS sensors on vehicles on the road today
• Offers industry-leading Relearn-by-OBD vehicle coverage
• Compatible with 315MHz, 433/434MHz, and 2.4GHz (BLE) frequency TPMS sensors
• Covers most U.S., European, and Asian vehicles (1996 and newer) to provide professional diagnostic services
• Supports all-system diagnostics (including reading and erasing codes, viewing Freeze Frame data, viewing and graphing Live Data, and performing bi-directional Active Tests and Special Functions)

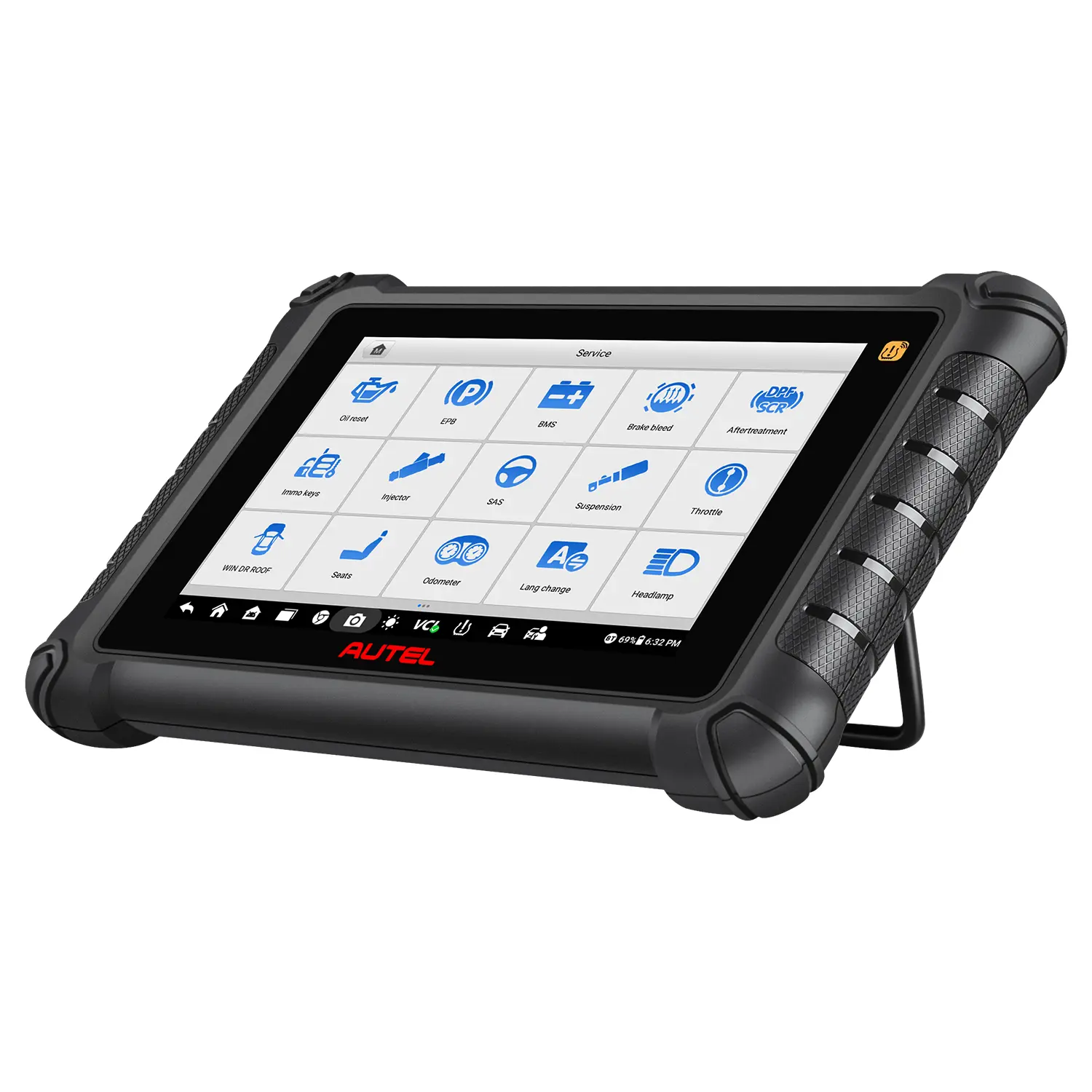

• Features an extensive Service Menu with direct access to 38+ maintenance services
• Supports the latest communication protocols, including CAN FD/DoIP
• Generates detailed Pre- and Post-Scan Reports; Cloud-based Report Management enables viewing, saving, printing, and sharing reports on mobile phones, tablets, and computer browsers
• Auto-VIN technology automatically identifies a vehicle’s make, model, and year
• Equipped with an 8-inch touchscreen (1024 x 600 resolution) and an 8-megapixel rear camera
• 64GB onboard memory for fast processing and software access
• Runs on Android 11 operating system for fast boot-up and operation speed

Specifications

Item		Description
Tablet	Recommended Use	Indoor
	Operating System	AndroidTM 11
	Processor	Quad-Core (1.8 GHz)
	Memory	4 GB RAM & 64 GB ROM
	Display	8-inch LCD screen with 1280 x 800 resolution
	Rear Camera	8 MP
	Connectivity	• Wi-Fi • USB 2.0, Type C • BT • Mini SD Card (supports up to 64 GB)
	Sensors	Ambient light sensor for brightness auto changing
	Audio input/output	Input: N/A Output: buzzer
	Power and Battery	• 3.7 V/7700 mAh lithium-polymer battery • Charges via 5 V DC power supply
	Tested Battery Life	Around 7 hours of continuous use
	Battery Charging Input	5 V/3 A
	Power Consumption	Approx. 600 mA (LCD on with default brightness, Wi-Fi on) @3.7 V
	Operating Temp.	0 to 50 °C (32 to 122 °F)
	Storage Temp.	-10 to 60 °C (14 to 140 °F)
	Operating Humidity	5% to 95% non-condensing
	Dimensions (W x H x D)	1259.87 mm (10.23”) x 168.98 mm (6.65”)  x 33.60 mm (1.32”)
	Net Weight	998 g (2.2 lbs)
	Protocols	ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISO11898 (High-speed, Middle-speed, Low-speed and Single-wire CAN, fault-tolerant CAN), SAE J2610, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6, DoIP, CAN FD
V150	Communication	BR + EDR
	Wireless Frequency	2.4 GHz
	Input Voltage Range	8 to 30 V DC
	Supply Current	150 mA @ 12 V DC
	Operating Temp.	0 to 50 °C (32 to 122 °F)
	Storage Temp.	-10 to 60 °C (14 to 140 °F)
	Dimensions (L x W x H)	77.47 x 46.8 x 21.38 mm (3.05” x 1.84” x 0.84”)
	Weight	51.5 g (0.11 lbs)

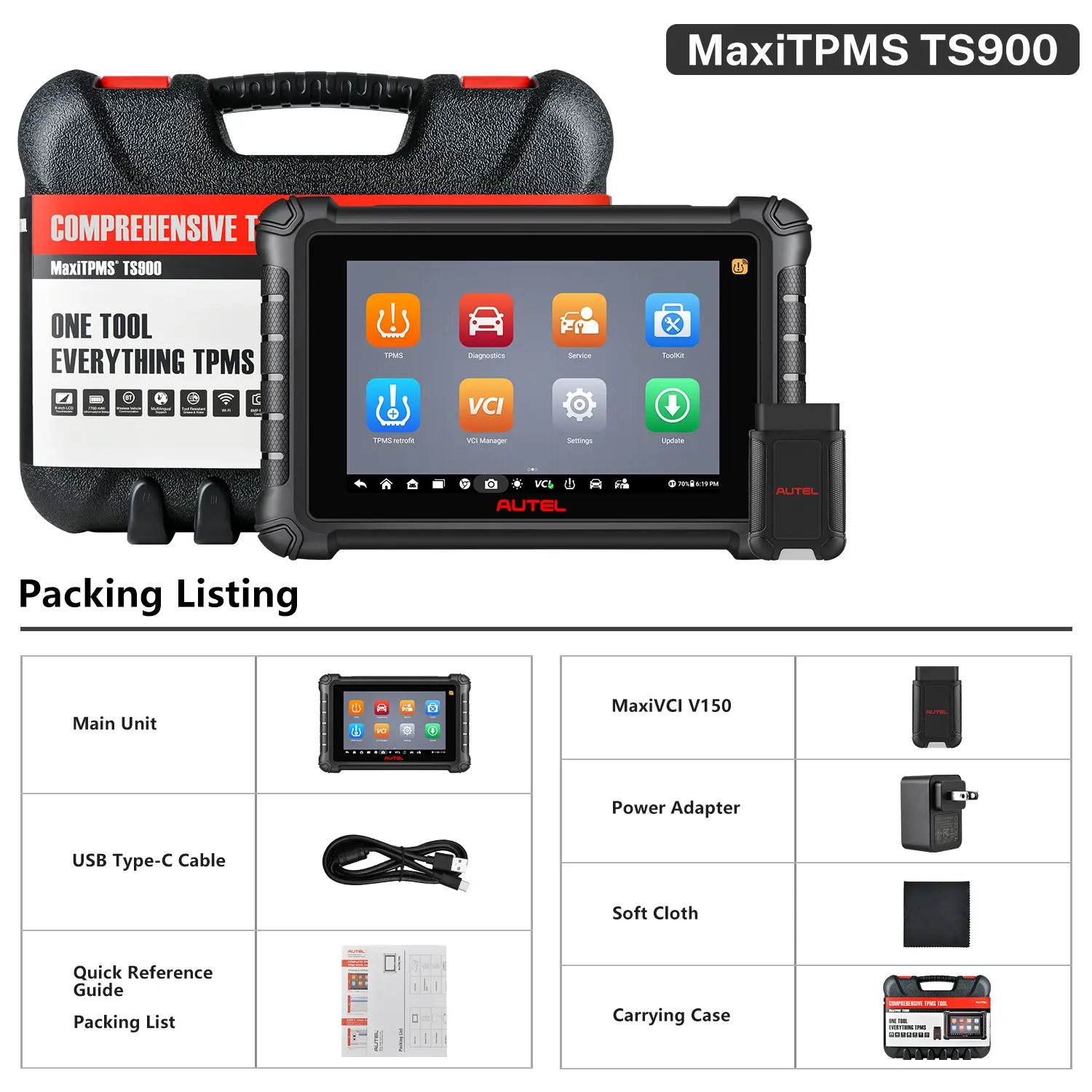

Packing List

• 1x TS900 Main Unit
• 1x MaxiVCI V150
• 1x Power Adapter
• 1x USD Type-C Cable
• 1x Soft Cloth
• 1x Quick Reference Guide
• 1x Packing List(This document)
• 1x Carrying Case
