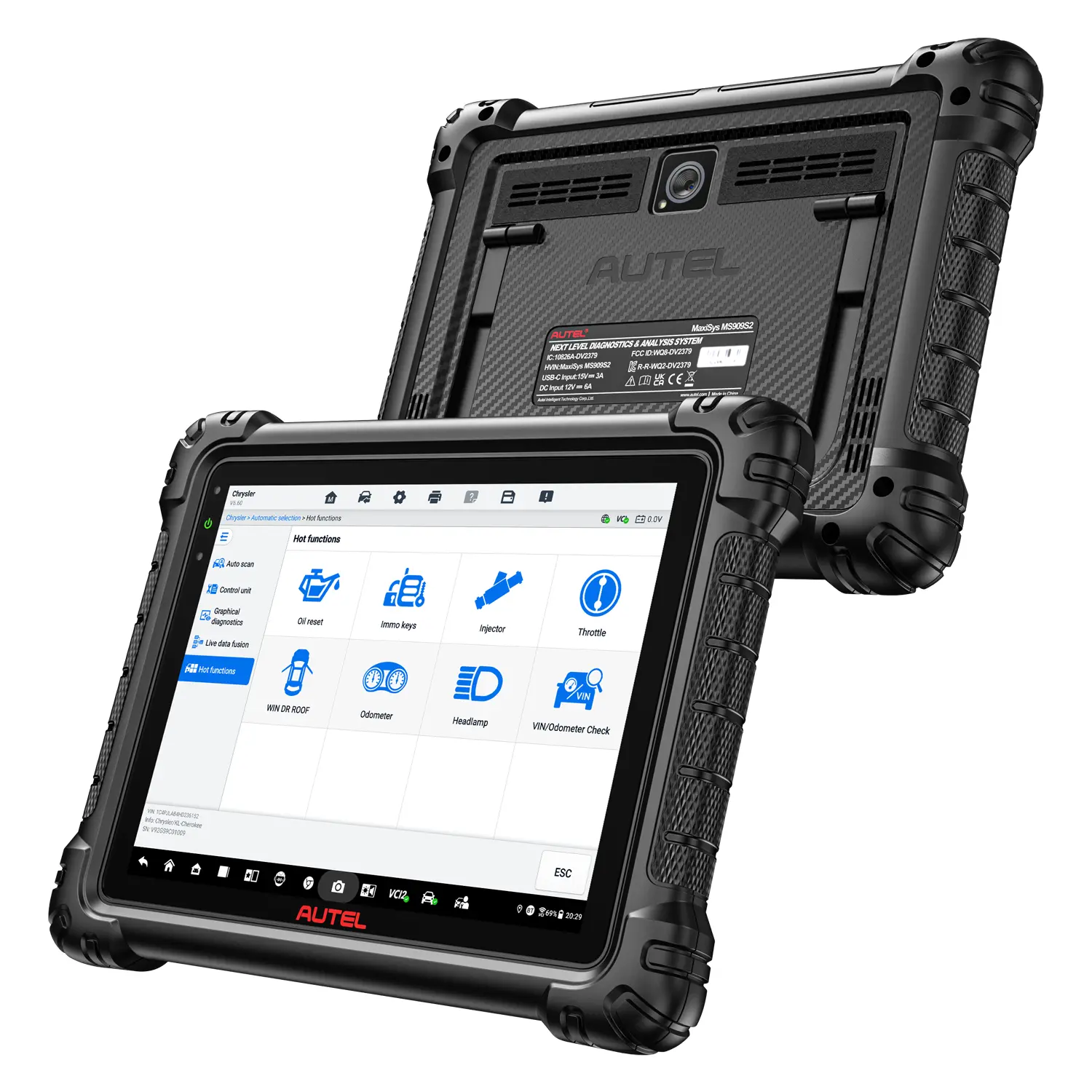

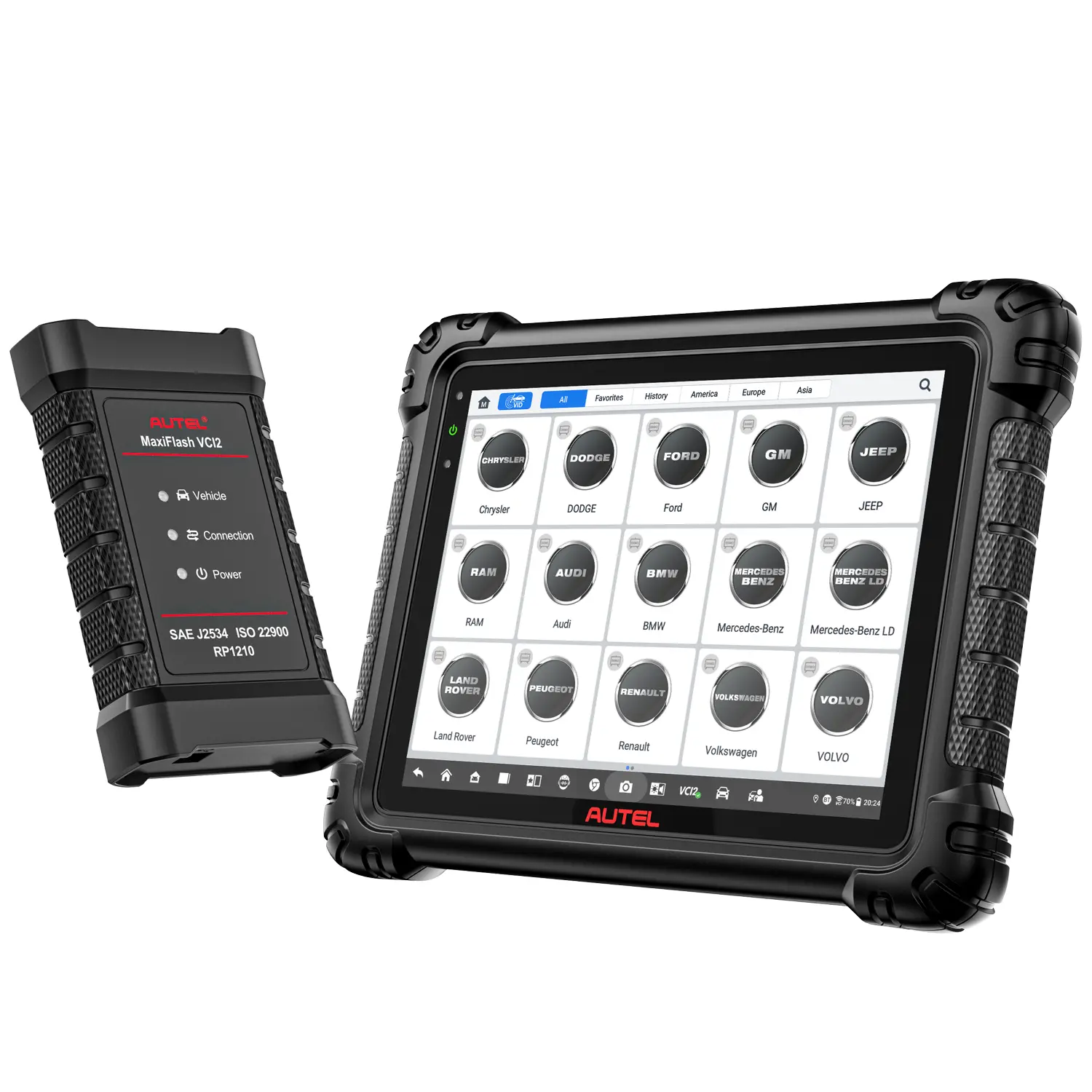

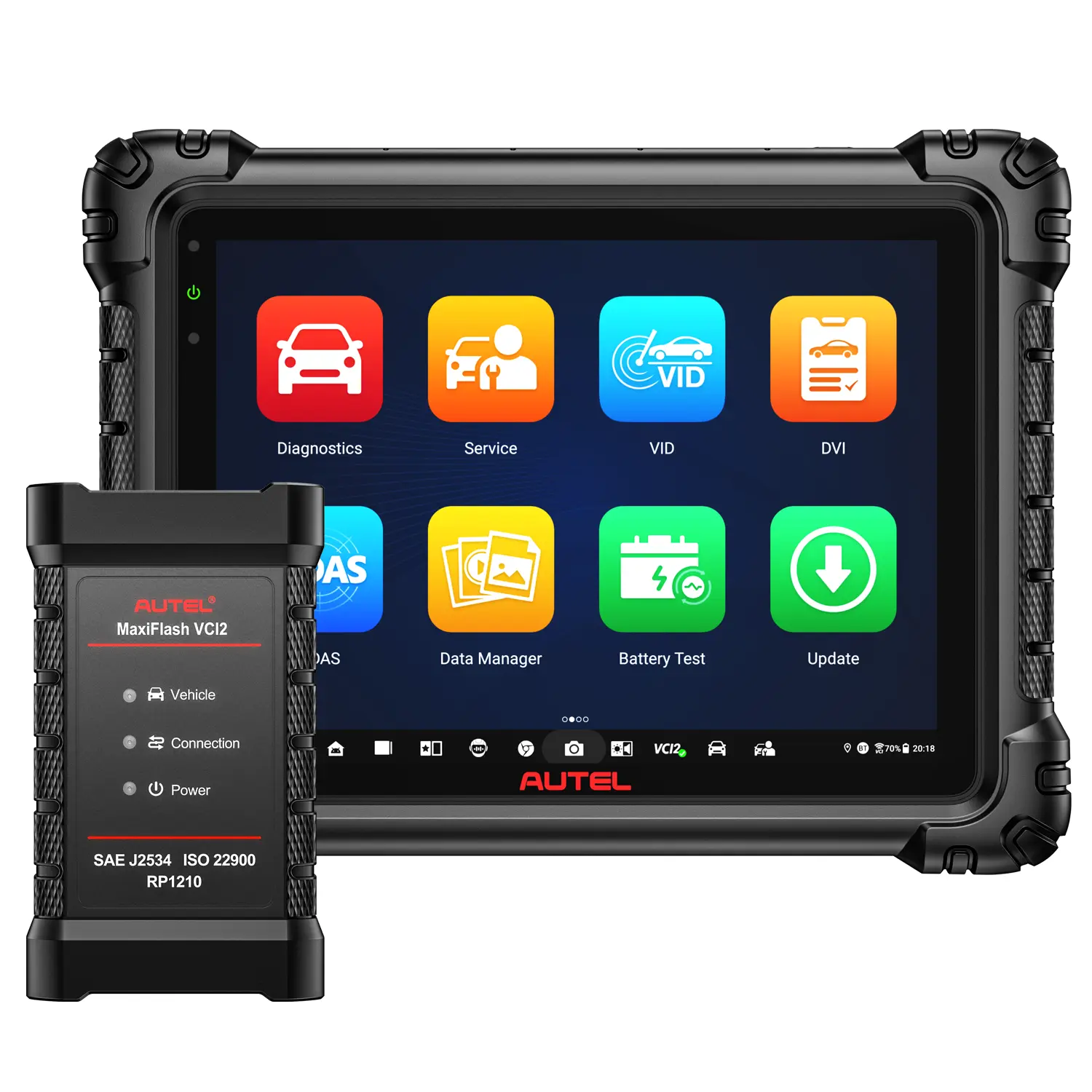

Autel MaxiSys MS909S2 Next Level Diagnostics & Analysis System

MaxiSys MS909S2 is an 11-inch touchscreen Android-based advanced diagnostic tablet that sets a new benchmark for efficiency and accuracy. Upgraded hardware and next-gen features deliver near OEM-level diagnostics and service capability for cars and light trucks.

Autel MaxiSys MS909S2 Features

• Data-driven diagnostics with enhanced PID analysis; multi-PID selection lets you graph and compare related parameters at the same time to spot system anomalies quickly
• Record and compare value changes across multiple systems; ideal for engine fault, performance and emissions troubleshooting
• Vehicle system process diagram displays live data at critical points so you see exactly what is happening when it happens
• Enhanced split-screen diagnostics + X (multiple apps) lets you view live data, scope, topology or DVI side by side without switching screens
• Hands-free virtual assistant MAX responds to verbal commands; initiate a system scan, open maintenance routines or run active tests without touching the tablet
• Network topology 3.0 delivers dynamic network analysis with color-coded module status at a glance
• One-Tap Access to 45+ Maintenance and Reset Service Functions.
• Advanced digital vehicle inspection through multi-point DVI creates a visual report customers can see and approve on the spot
• Comes with one year free warranty and software updates.

Motor TruSpeed Repair (Optional)

Motor TruSpeed Repair is an online database providing comprehensive OEM-sourced repair and service data. The service features advanced search capabilities and vehicle-specific repair guidance to assist diagnostics and repair workflows.

• Comprehensive OEM repair and service data
• Vehicle-specific fault guidance and troubleshooting
• Fast, searchable access to the latest technical information

Note: Motor TruSpeed Repair is an optional subscription service (USD 650/year).

Data-Driven Diagnostics

• Data Visualization: Multi-parameter graphing to identify PID relationships and system anomalies.
• Live Data Fusion: Record and compare values across multiple systems for correlation analysis.
• Parameter Grouping: Multi-PID selection for simultaneous analysis.
• Reference Sampling: Save pre- and post-repair PID samples with min/max/average values for verification.



Specifications

Item	Description	MaxiSys MS909S2
HARDWARE	Storage	12GB+256GB
	Screen	11" inch
		2176*1600
	Android System	Android 13
	Battery	15000 mAh
	Camera	R:16M, F:16M
	WiFi	Dual wifi6e
	DC Fast Charging	DC
	Bluetooth	Support
	VCI	VCI 2
	Charging Dock	NA
VCI2	Oscilloscope	NA
	Multimeter	NA
Protocol	DoIp	Support
	CanFD	Support
	J2534	Support
	D-PDU	Support

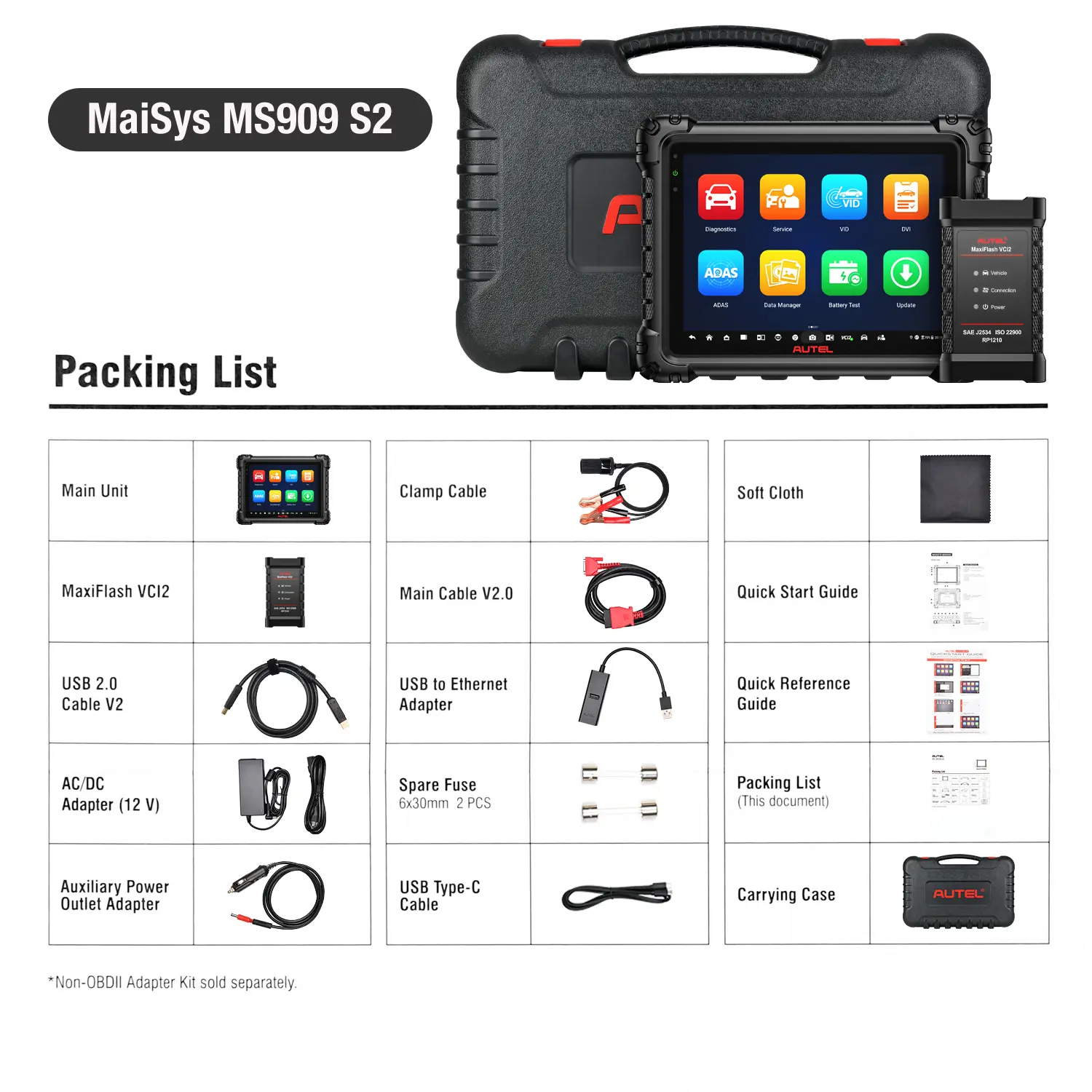

Packing List

• 1 x MS909S2 Main Unit
• 1 x MaxiFlash VCI2
• 1 x USB 2.0 Cable V2
• 1 x AC/DC Adapter (12V)
• 1 x Auxiliary Power Outlet Adapter
• 1 x Clamp CABLE
• 1 x Main Cable V2.0
• 1 x USB to Ethernet Adapter
• 1 x USB Type-C Cable
• 1 x Soft Cloth
• 1 x Quick Reference Guide
• 1 x Packing List(This document)
• 1 x Carrying Case



MaxiSys MS909S2 Product guides and documents

UltraS2-MS919S2-MS909S2-Flyer-Global (PDF)
MS909S2_QUICK GUIDE (PDF)
MaxiSys MS909S2_User Manual (PDF)
